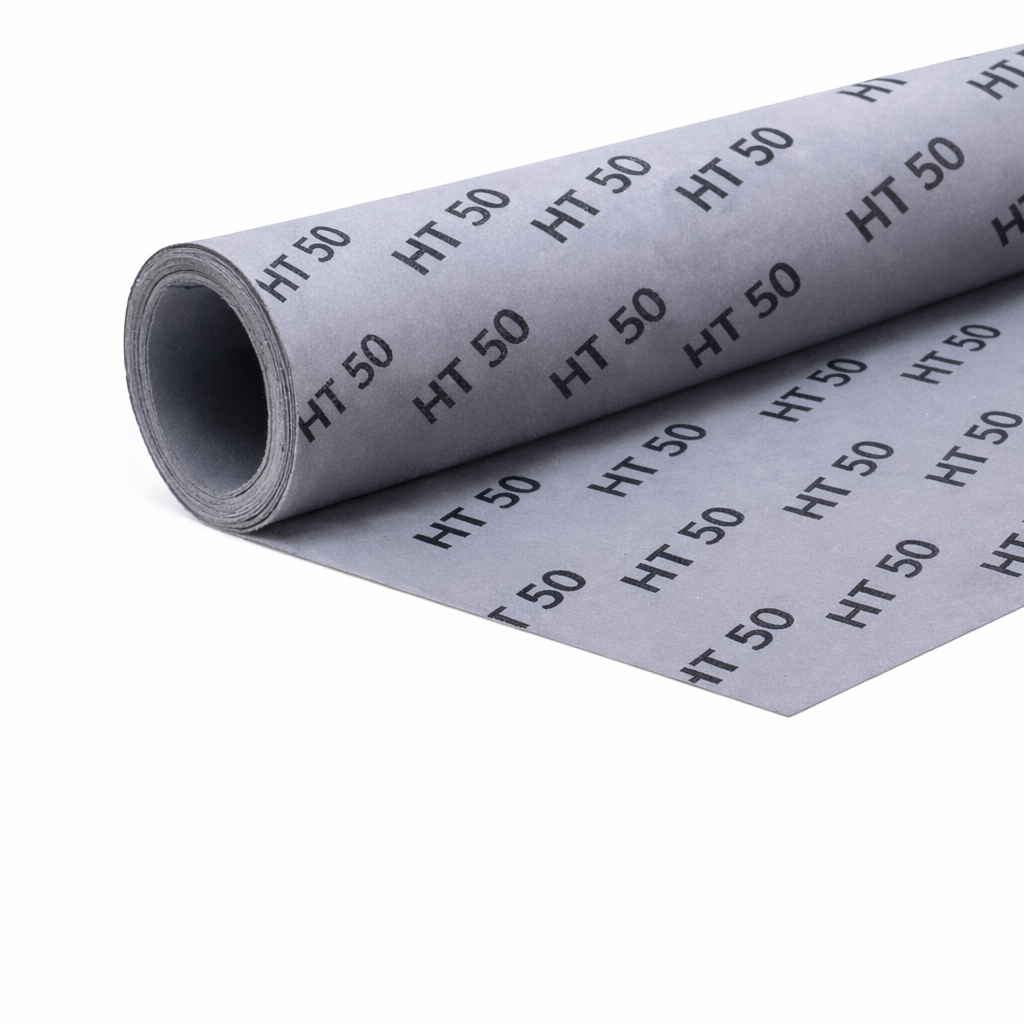

HT-50 is a medium density material with good heat and flame resistance. It Is intended for use as a general purpose insulating filler material in exhaust manifold and heat shield applications and can withstand a maximum temperature of 400°C.
| S. No. | PROPERTY | SPECIFICATIONS | TEST METHOD |
|---|---|---|---|
| 1. | Density gm/cc | 1.05-1.15 | ASTM F-1315 |
| 2. | Compressibility % AT 70 kg/cm2 (1000 PSI) |
15 (max) | ASTM F-36 |
| 3. | Recovery % | 20 (min) | ASTM F-36 |
| 4. | Tensile Strength kg/cm2 | 20 (min) | ASTM F-152 |
| 5. | Loss On Ignition % AT 600℃ |
18 | ASTM F-433 |
| 6. | Moisture Content % | 2 (max) |
*Specification values determined by test methods required for ASTMF-104, Type-3 materials.
