A cylinder head gasket seals a demanding engine joint between the block and cylinder head, where combustion pressure, heat, engine oil and coolant must remain separated. Because these duties occur together, cylinder head gasket material cannot be selected only by a maximum temperature figure.
For OEM engineers and gasket manufacturers, the gasket must maintain sealing stress through heating, cooling and vibration. Facing sheet, metal core, reinforcement, coating and thickness all affect the result. The right cylinder head gasket material must also support repeatable high-volume production.
What Does Cylinder Head Gasket Material Need to Do?
A head gasket separates combustion gases from oil and coolant passages. The head gasket overview on Wikipedia explains this role, while the cylinder head reference outlines the passages and components found in the head.
Cylinder head gasket material therefore has to do more than resist heat. It should conform to controlled surface irregularities, withstand clamp load, resist fluid-related swelling and retain useful recovery through thermal cycles. The required balance changes between motorcycles, generators, diesel engines and passenger vehicles.
Main Types of Cylinder Head Gasket Material
There is no universal construction. Cylinder pressure, component materials, fastener layout, surface finish, coolant design and cost all influence the solution.
Multi-Layer Steel Cylinder Head Gasket Material
Multi-layer steel, or MLS, uses formed steel layers and coatings. Steel provides strength around combustion openings, while embossments help concentrate sealing pressure.
MLS can suit demanding engines, but surface finish, flatness and clamp load are critical. An OEM therefore evaluates the MLS sealing system together with the block, head, fasteners and coating.
Non-Asbestos Facing Cylinder Head Gasket Material
Non-asbestos facing sheets are used in composite constructions with a perforated metal core. They may use inorganic fillers with elastomeric binders such as NBR.
This cylinder head gasket material is selected for a balance of compressibility, recovery, tensile strength and resistance to oil, fuel and coolant. Consistent thickness and density also matter because they influence lamination, cutting and finished-gasket repeatability.
Graphite and Specialized Metallic Options
Graphite constructions offer conformability and thermal performance, while copper or metallic designs suit specialized applications with suitable joint preparation.
Important Properties of Cylinder Head Gasket Material
No single data point proves suitability. OEMs compare laboratory properties and validate the finished gasket in the engine.
Compressibility and Recovery
Compressibility shows how a material deforms under load. Controlled compression helps a facing adapt to surface variation; too little may leave leakage paths, while too much can reduce dimensional control.
Recovery shows how much thickness returns after load is removed. For cylinder head gasket material, useful recovery helps the sealing system respond to thermal movement. OEMs look for a balanced response rather than simply choosing the highest number.
Fluid Resistance of Cylinder Head Gasket Material
Cylinder-head joints encounter engine oil and coolant, and some areas may see fuel-related media. Excessive absorption can cause swelling, softening or changes in mechanical behavior.
OEM engineers therefore compare test data with the actual fluids and operating temperature. Cylinder head gasket material should be qualified for the intended environment rather than approved from a broad “oil resistant” claim.
Tensile Strength, Handling and Heat Stability
Facing material must survive lamination, punching, transport and assembly. Adequate tensile strength supports stable production. OEMs also study how the facing changes after heat exposure, including loss of recovery, hardening or dimensional movement.

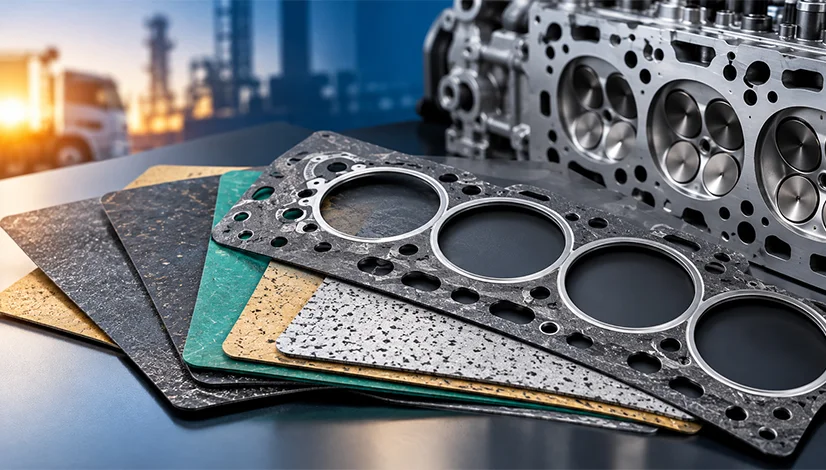

Cylinder Head Gasket Material Comparison for OEM Screening
The table below is a screening guide, not an engine-specific approval.
| Material / Construction | Main Advantage | Key Design Consideration | Typical Use |
|---|---|---|---|
| Multi-layer steel (MLS) | High structural strength | Surface finish, flatness and clamp design | Many modern automotive engines |
| Non-asbestos facing on metal core | Conformability plus core support | Compression, recovery and fluid resistance | Small, diesel and industrial engines |
| Graphite composite / reinforced | Conformability and thermal capability | Reinforcement and oxidation environment | Selected engine constructions |
| Copper / specialized metal | Thermal conductivity and durability | Joint preparation and sealing design | Performance or specialized engines |
This comparison shows why cylinder head gasket material should not be selected from a material name alone. OEM qualification depends on how the complete gasket behaves in the actual engine joint.
How OEMs Choose Cylinder Head Gasket Material and Facing Sheets
OEMs normally narrow material options through a structured engineering process.
1. Define the Engine Duty
Engine architecture comes first: bore size, combustion pressure, head and block materials, fastener pattern, temperature range and operating cycle. These conditions establish the target for cylinder head gasket material before supplier grades are compared.
2. Match the Facing Material to the Core
In a composite gasket, the facing and metal core must work together. Core perforation, thickness and rigidity influence how the facing grips and compresses.
Aeroflex states that its Non Asbestos Cylinder Head Gasket Facing Material is designed for combination with perforated metal cores. HNA-1000, HNA-2000, HNA-3000 and HNA-4000 use inorganic fillers encapsulated with NBR binder and publish grade-specific values for density, compressibility, recovery, tensile strength and fluid resistance. This helps buyers shortlist cylinder head gasket material against a defined gasket construction.
3. Check Oil, Fuel and Coolant Exposure
Fluid resistance must match the real engine fluids. Aeroflex publishes ASTM F-146 data for HNA grades, including oil, fuel and, for selected grades, glycol/water exposure. The preferred grade is the one whose tested behavior fits the intended environment and whose completed gasket passes application testing.
4. Review Compression, Recovery and Strength Together
High compressibility is not automatically better, and the strongest sheet is not automatically the best seal. Engineers look for a combination that supports conformance, load retention, handling and durability.
Aeroflex publishes ASTM F-36 compressibility and recovery data and ASTM F-152 tensile values for its HNA range. These figures help buyers compare cylinder head gasket material before prototype and engine testing.
5. Confirm Thickness and Converting Requirements
Thickness affects the finished gasket stack and converting process. Aeroflex lists its HNA facing materials in a 0.50 mm to 1.50 mm roll-thickness range and 1220 mm roll width, with special sizes available on request.
6. Validate the Finished Gasket
Sheet data is a screening tool. The final gasket still needs appropriate leakage, thermal-cycle, durability and production validation. Cylinder head gasket material is only one part of the sealing system; core geometry, coatings, surface finish, bolt load and assembly practice also influence performance.

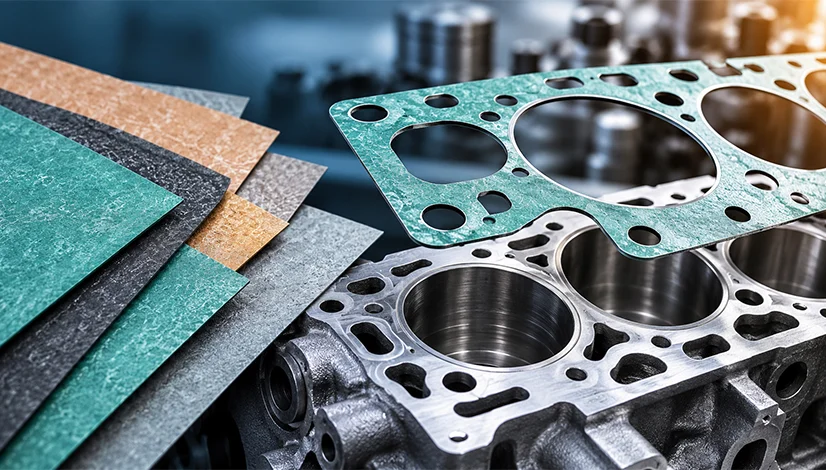

Aeroflex Cylinder Head Gasket Material for Facing Applications
Aeroflex Sealing Material Mfg. Co. manufactures non-asbestos cylinder head facing sheets for gasket manufacturers, OEM supply chains and industrial engine applications. Its published HNA range includes HNA-1000, HNA-2000, HNA-3000 and HNA-4000.
According to Aeroflex product data, these NBR-bound grades suit perforated metal cores and list maximum operating temperatures up to 220°C. Published tests reference ASTM F-36, F-152, F-146 and F-495.
Buyers comparing cylinder head gasket material should use these values as a starting point and then align the grade with temperature, fluid exposure, gasket design, core type, compression target and production requirements.
For wider context, Aeroflex’s Automotive OEM Gasket Material Selection guide explains how operating conditions, standards and supplier capability influence approval.
Common Cylinder Head Gasket Material Selection Mistakes
Common errors include selecting only by temperature, assuming all non-asbestos sheets behave alike, ignoring coolant chemistry, changing thickness without reviewing clamp behavior and skipping finished-gasket validation.
A safer process is to define the operating environment, compare published properties, build representative gaskets and validate the complete joint. This turns cylinder head gasket material selection into an engineering decision rather than a catalogue shortcut.
FAQs About Cylinder Head Gasket Material
What is the best cylinder head gasket material?
There is no universal best option. MLS, non-asbestos composite facing, graphite and specialized metallic constructions can all be appropriate. The correct cylinder head gasket material depends on pressure, temperature, fluids, surface finish, gasket design, clamp load and durability targets.
Why use non-asbestos facing material?
Non-asbestos facing sheets can provide controlled compressibility, recovery and fluid resistance without asbestos. With a suitable metal core, they can be engineered for small engines, diesel engines and other defined applications.
Which properties should OEM buyers compare first?
Start with density, compressibility, recovery, tensile strength, fluid resistance, temperature guidance, thickness and binder type. Then compare those values with the gasket construction and engine duty. Data-sheet screening should always be followed by application validation.
Can facing material alone prevent head-gasket failure?
No. Facing is one part of the sealing system. Core design, bore sealing, coatings, surface finish, fastener load and installation also matter. Even correctly selected cylinder head gasket material can underperform if the joint is unsuitable.
Final Takeaway
Choosing cylinder head gasket material is an engineering decision, not a shortcut based on one specification. OEMs evaluate compression behavior, recovery, fluid resistance, heat exposure, manufacturing consistency and compatibility with the selected core or layered construction.
For composite programs, facing consistency matters during lamination, cutting, assembly and engine operation. Aeroflex’s HNA range gives gasket manufacturers and OEM buyers several non-asbestos grades to compare using published ASTM-based properties.
The practical process is straightforward: define the engine environment, compare material data, match the facing to the gasket construction, manufacture representative parts and validate the finished joint. This makes cylinder head gasket material a controlled element of the complete engine sealing system.
